Full Range Size 0.32inch to 1.03inch
Ultra-Performance Micro OLED Display Supplier
experience
With more than 14 years of experience in TFT LCD and AMOLED industry with 200+ models for different applications.
Solutions
Customization is supported. We can custom HDMI and PCB Board according to your drawings.
Technical Support
You can get a prompt 1V1 pre-sales and after-sales technical support within an hour
You will find a suitable OLED Display and OLED Screen solution, supported by a team that you can trust.
Choose Your Micro OLED Display
Our Main products include Small LCD screens, 0.96-inch to 13.3-inch, TFT LCD modules, AMOLED displays, and OLED displays with capacitive touchscreens. We are also expanding our product range to flexible OLED screens and OLED microdisplays.
0.32inch Micro OLED
Resolution: 800*600
Active Area: 6.48*4.86mm
Interface: I2C+RGB,MIPI
Brightness: 2000 nit
Frame Rate: 50~120Hz
0.39inch Micro Display
Resolution: 1920*1080
Active Area: 4.96*8.74mm
Interface: MIPI, MIPI+I2C
Brightness: 300 nit
Frame Rate: 60Hz~90Hz
0.49inch Micro OLED
Resolution: 1920*1080
Active Area: 10.7*6.06mm
Interface: MIPI
Brightness: 1800 nit
Frame Rate: 60Hz~90Hz
0.6inch Micro Display
Resolution: 1920*1080
Active Area: 13.2*7.43mm
Interface: MIPI, I2C
Brightness: 6000 nit
Frame Rate: Up to 120Hz
0.72inch Micro OLED
Resolution: 1920*1080
Active Area:15.5* 9.72mm
Interface: MIPI
Brightness: 2000nit
Frame Rate: 50Hz~70Hz
0.5inch Micro OLED
Resolution: 1600*1200
Active Area: 10.08*7.56mm
Interface: MIPI
Brightness: 1000 nit
Frame Rate: 60Hz~120Hz
0.71inch Micro Display
Resolution: 1920*1080
Active Area: 8.99*15.8mm
Interface: LVDS
Brightness: 300 nit
Frame Rate: 60Hz
0.83inch Micro OLED
Resolution: 2560*1440
Active Area: 18.43*10.36mm
Interface: MIPI
Brightness: 1800 nit
Frame Rate: 60Hz~90Hz
1.03inch Micro Display
Resolution: 2560*2560
Active Area:18.43*18.43mm
Interface: MIPI
Brightness: 1800 nit
Frame Rate: 60Hz~90Hz
HDMI/ Type C Board
Resolution: 1080p/2K
Interface: MIPI
Brightness: 1800-2000nit
Brightness Adjust
Customization Supported
Product Features
Lightweight, compact, precise structure, high brightness, low power consumption, high contrast
GL Electronics is committed to providing a new generation of micro displays with exquisite images and high performance, opening a new era of display applications.
High PPI, high refresh rate
High-quality picture display, committed to solving the screen door effect, PPI has exceeded 4500, and the refresh rate can reach up to 90Hz.
High brightness, low power consumption
High brightness, low power consumption, clear and easy to read under strong light, bringing users a realistic and comfortable visual experience.
Improved motion blur
Adapt to various device drivers, realize global display, and improve the troubles caused by motion blur to users.
Rich colors
Excellent color performance, committed to creating the richest colors, the display color gamut has exceeded 90% DCI-P3.
High-speed transmission interface
Adopts MIPI interface, fast transmission rate, short response time, low power consumption, and is compatible with a variety of mobile devices.
Testing Videos
Check The Display Performance
What We Can Do For You?
You didn’t find the right display? You may need customization. More than 80% of our products are customized versions. We can customize the products you need according to your drawings, saving you 30% of time and cost and improving project efficiency.

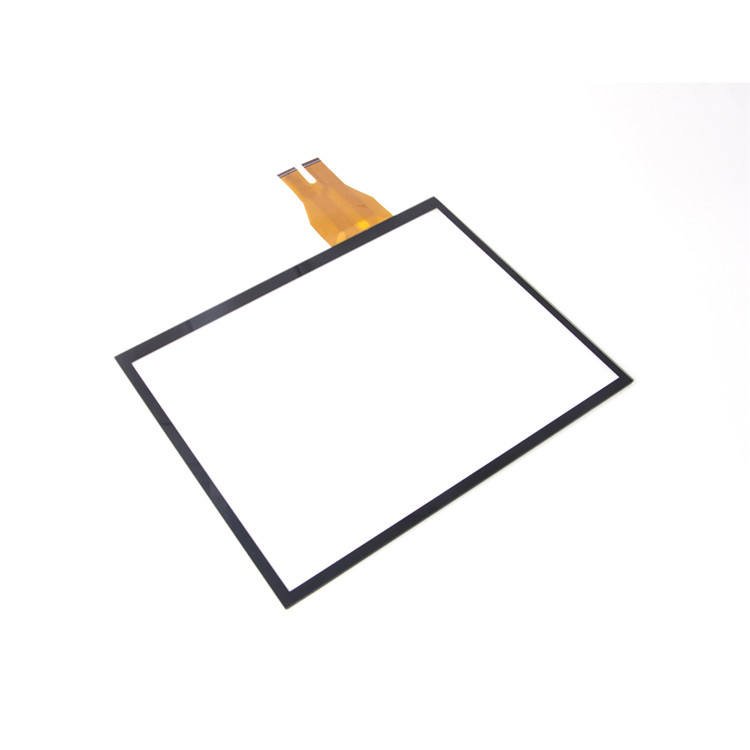

Custom Your Touchscreen
- Shape and Dimension
- Touch Panel Function: Waterproof, Single and Multiple Touch
- Surface Treatment: Anti-Glare, Anti-Reflective, Anti-Finger Shape;
- Cover Glass: Gorilla(Corning)
- Screen Printing of LOGO.
- Thickness – 0.55mm,0.7mm. 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm;
- FPC- Different Shapes and lengths;
- Touch Controller: FT****, GT***…
- Interface Support: I2C, USB, HDMI…
Custom Your FPC
- Different Interface: SPI 3/4Wire, Quad-QSPI, MIPI DSI…
- FPC Shape
- Pin Definition (It would be better to provide a draft.)
- Connector Mode (Plug-in, Soldering, Board to the board….)
- Length of the FPC
- Pitch ( 0.3mm, 0.35mm, 0.5mm)
- Pin Number (10pin, 12pin, 20pin,30pin…)
- EMI Films (Electro-Magnetic Interference)
- Screen printing- logos, Text, Pictures, etc…
Custom Your Glass& Panel
- Shape and Dimension
- Active Area
- Resolution
- Interface
- Driver IC
- Brand: AUO, BOE, SONY, LG…
- Thickness – 0.55mm,0.7mm. 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm;
- FPC- Shapes and lengths, Pinout, Connector
- Touchscreen: Oncell Or Incell
Custom Your HDMI& PCB Board
- Dimension and Shape
- Interface
- Brightness Adjustment
- Conformal coating
- Microchip/ Micro Controller
- Power Supply
- Audio Function
- Bluetooth, Wifi…
- Other Functions
why choose us
At our core, customer satisfaction is our top priority, which is why we strive to create and provide top-notch TFT-LCD/OLED Displays that are tailored to your specific preferences and requirements.
Low MOQ Request
MOQ 50 pcs for trial production. MOQ 100pcs for mass production. Low MOQ can help you start project development faster.
Customization Support
We support HDMI adapter board and PCB customization, which will help you save 50% of the cost.
10 Years Stable Supply
Our products support 8-10 years long-term supply. This can maintain the continuity and stability of your project.
Prompt Delivery Time
Sample delivery is 3-7 working days, and customization 4-6 weeks, which will help you save at least 50% development time.
About Us
Founded in 2016(head office in 2011). Guangli Electronics is located in Shenzhen City, Guangdong Province of China which covers area of 1200 square meters and has more than 80 front-line employees and 4 automatic production lines.
Our Main products include a Small LCD screen, 0.96inch to 13.3inch, TFT LCD modules, AMOLED displays, and OLED witha capacitive touchscreen display. We also expanding our product range to flexible OLED screens and OLED microdisplays.
Most of our products are widely used in smartwatch wearable devices, the automotive industry, Smart Home devices, industrial control machines, Portable POS systems, Gaming consoles, Handheld devices, Household appliances like Sweeping robots, other communication devices like IP phone, Smart Security equipment, and other fields. All developed products have passed CE, ROHS, and other certifications.
Reliability Tests
Laboratory Equipments
Through reliability tests of various experimental equipment, to ensure the quality and stability of the product.
Click & Scratch Tester
The click and scratch tester is a device used to test the display resistance of materials. It usually includes a sliding device to simulate friction and a device to apply force.
High Temperature Tester
A constant temperature and humidity testing machine is used to test the parameters and performance of electronic products and materials after changes in the environment, such as high temperature, low temperature, humidity, or constant temperature.
Electrostatic Instrument
Can measure and detect static electricity generated in various manufacturing processes such as semiconductors, optical disks, and thin films
Salt Spray Test machine
The salt spray test machine is designed to test the corrosion resistance of various materials after surface treatment such as paint, coating, electroplating, anodizing, rust prevention, etc.
Our Certificates
We Know Your Concerns
Samples are available. The lead time is 3-7 Working days.
We do not have MOQ for samples. 1-2pcs would be no problem.
Yes. It will be better if you have any drawings for evaluation, and we will customize accordingly.
Our products meet the needs of military industry and can support low temperatures of -40 degrees.
We can provide eyepieces, lenses, cameras and other related supporting products you need. In addition, we can also provide free HDMI cables for your testing.
Get Your Free HDMI Customization
Share your HDMI board customization needs, you will not regret choosing us. You will get a free customization when your order is more than 100pcs.
